Intake Manifold — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4677

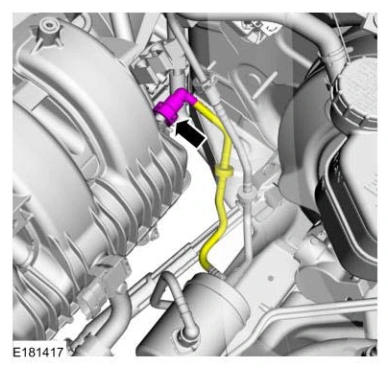

5. Connect the vacuum tube quick release coupling at the rear of the intake manifold.

Intake Manifold — original illustration 1, reference 4677Original colors & callouts · Select to enlarge

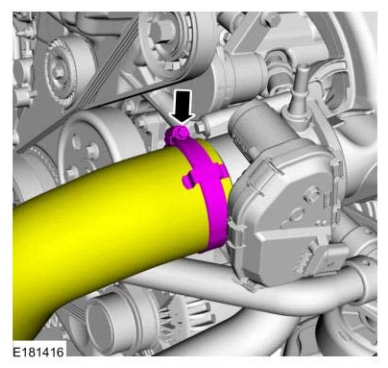

6. Position the CAC outlet tube and tighten the clamp.

Torque

: 44 lb.in (5 Nm)

Intake Manifold — original illustration 2, reference 4677Original colors & callouts · Select to enlarge

7. Connect the throttle body electrical connector and the wire harness retainer.
