Intake Manifold — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4674

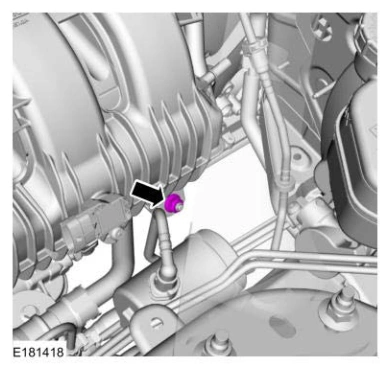

Intake Manifold — original illustration 1, reference 4674Original colors & callouts · Select to enlarge

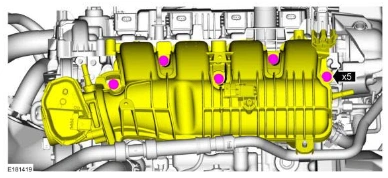

9. Remove the bolts and position intake manifold back.

Intake Manifold — original illustration 2, reference 4674Original colors & callouts · Select to enlarge

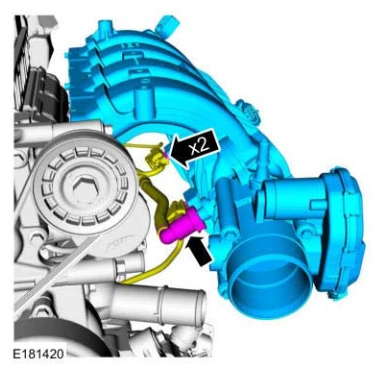

10. Disconnect the PCV tube quick release coupling.

Detach the KS electrical connector retainers from the intake manifold.

Remove the intake manifold.

Intake Manifold — original illustration 3, reference 4674Original colors & callouts · Select to enlarge

NOTE: If the engine is repaired or replaced because of upper engine failure,
