Intake Manifold — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,672HTML edition
← Chapter contentsManual collection
Intake Manifold — original illustration 1, reference 4672Original colors & callouts · Select to enlarge

4. Disconnect the MAPT sensor electrical connector and the wire harness retainers.

Intake Manifold — original illustration 2, reference 4672Original colors & callouts · Select to enlarge

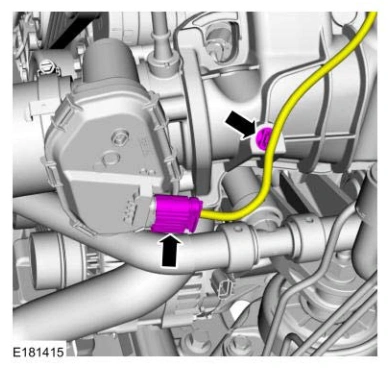

5. Disconnect the throttle body electrical connector and the wire harness retainer.

Intake Manifold — original illustration 3, reference 4672Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4672
