Intake Manifold — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,673HTML edition
← Chapter contentsManual collection

6. Loosen the clamp and position aside the CAC outlet tube.

Intake Manifold — original illustration 1, reference 4673Original colors & callouts · Select to enlarge

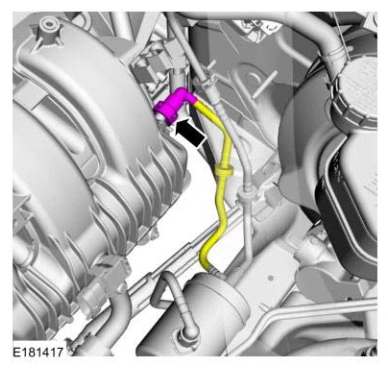

7. Disconnect the vacuum tube quick release coupling at the rear of the intake manifold.

Intake Manifold — original illustration 2, reference 4673Original colors & callouts · Select to enlarge

8. Remove the nut from the coolant tube on the intake manifold.
