Intake Manifold — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4676

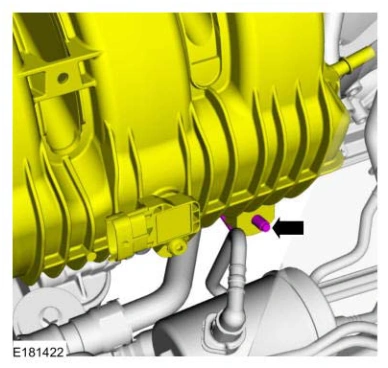

Intake Manifold — original illustration 1, reference 4676Original colors & callouts · Select to enlarge

3. Install the bolts.

Torque

: 177 lb.in (20 Nm)

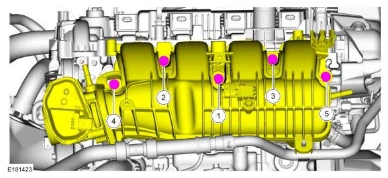

Intake Manifold — original illustration 2, reference 4676Original colors & callouts · Select to enlarge

4. Install the nut on the coolant tube.

Torque

: 106 lb.in (12 Nm)

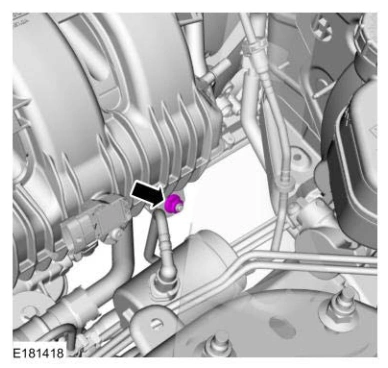

Intake Manifold — original illustration 3, reference 4676Original colors & callouts · Select to enlarge
