Oil Pan — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4688

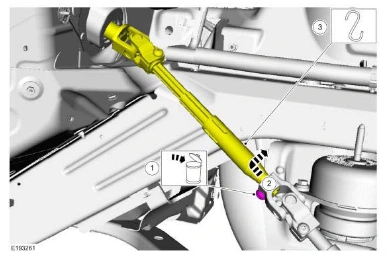

Secure the lower shaft to the frame rail to avoid damaging it during subframe removal.

Oil Pan — original illustration 1, reference 4688Original colors & callouts · Select to enlarge

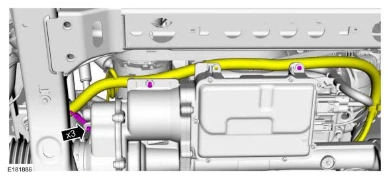

21. Detach the EPAS wiring harness pin-type retainers.

Oil Pan — original illustration 2, reference 4688Original colors & callouts · Select to enlarge

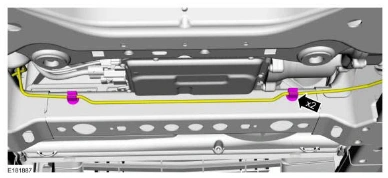

22. Detach the brake line retainers from the subframe.

Oil Pan — original illustration 3, reference 4688Original colors & callouts · Select to enlarge

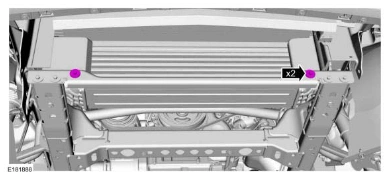

23. Remove the bolts from the support bar on the front of the subframe.

Oil Pan — original illustration 4, reference 4688Original colors & callouts · Select to enlarge

NOTE: To prevent damage to the transmission, do not loosen the transmission-
