Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,692HTML edition
← Chapter contentsManual collection

31. Remove and discard the rear subframe bolts.

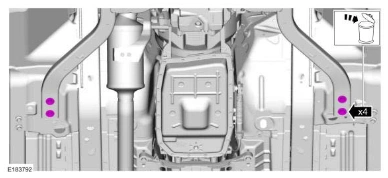

Oil Pan — original illustration 1, reference 4692Original colors & callouts · Select to enlarge

32. Remove and discard the front subframe nuts.

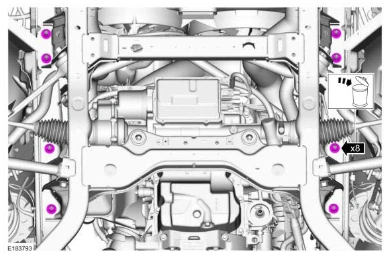

Oil Pan — original illustration 2, reference 4692Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

33. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.

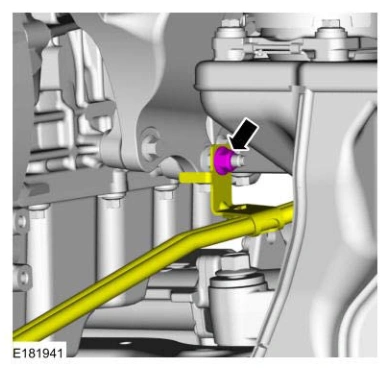

Oil Pan — original illustration 3, reference 4692Original colors & callouts · Select to enlarge

34. Remove the transmission cooling tube bracket nut and position aside.
