Oil Pressure Switch — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4715

Oil Pressure Switch — original illustration 1, reference 4715Original colors & callouts · Select to enlarge

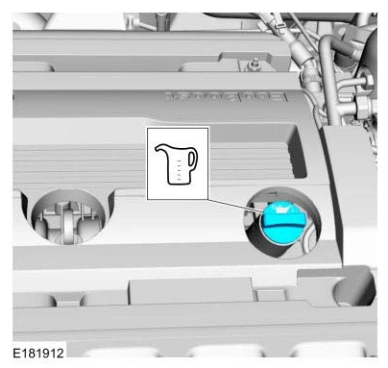

42. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Oil Pressure Switch — original illustration 2, reference 4715Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OIL PRESSURE SWITCH > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Disconnect the oil pressure switch electrical connector.

Ford_Mustang_all_2015-2017.pdf · source reference 4715
