Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,718HTML edition
← Chapter contentsManual collection

2. Loosen the dash seal.

3. Hand start the dash seal nuts.

Oil Pump — original illustration 1, reference 4718Original colors & callouts · Select to enlarge

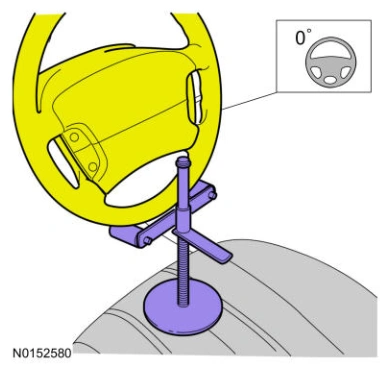

3. Using a holding device, hold the steering wheel in the straight-ahead position.

Oil Pump — original illustration 2, reference 4718Original colors & callouts · Select to enlarge

4. Remove the nuts and the engine appearance cover.
