Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,720HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4720Original colors & callouts · Select to enlarge

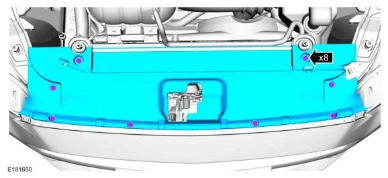

9. Remove the retainers and the radiator top shield.

Oil Pump — original illustration 2, reference 4720Original colors & callouts · Select to enlarge

10. Install retaining pins to support cooling module.

Oil Pump — original illustration 3, reference 4720Original colors & callouts · Select to enlarge

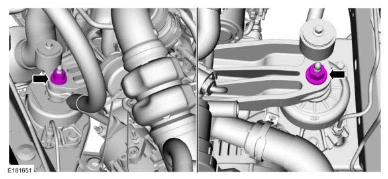

11. Remove the RH and LH engine mount bracket nuts.

Oil Pump — original illustration 4, reference 4720Original colors & callouts · Select to enlarge

12.
