Oil Pump — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4722

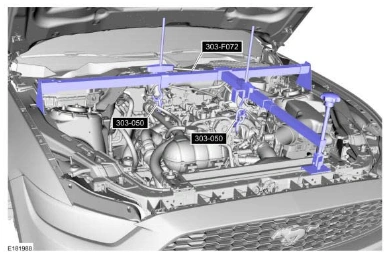

Oil Pump — original illustration 1, reference 4722Original colors & callouts · Select to enlarge

15. Remove the front wheels and tires. Refer to: Wheel and Tire .

16. Remove the screws, bolts and the underbody shield.

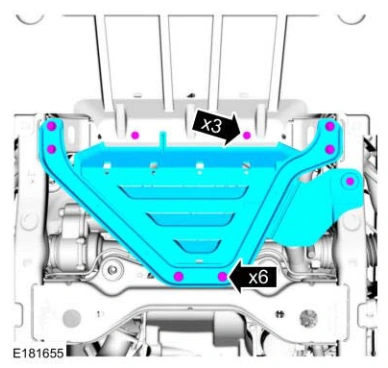

Oil Pump — original illustration 2, reference 4722Original colors & callouts · Select to enlarge

17. Remove the pin-type retainers, bolts and the underbody shield.

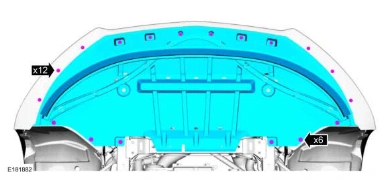

Oil Pump — original illustration 3, reference 4722Original colors & callouts · Select to enlarge

18. Drain engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque
