Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5189

Oil Pump — original illustration 1, reference 5189Original colors & callouts · Select to enlarge

48. Install the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

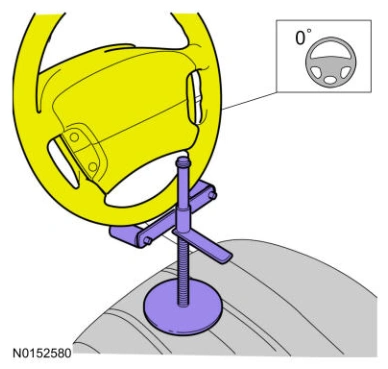

49. Remove the holding device.

Oil Pump — original illustration 2, reference 5189Original colors & callouts · Select to enlarge

50.

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts.

Torque

: 80 lb.in (9 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5189
