Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,187HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5187Original colors & callouts · Select to enlarge

42. Install the engine front cover. Refer to: Engine Front Cover .

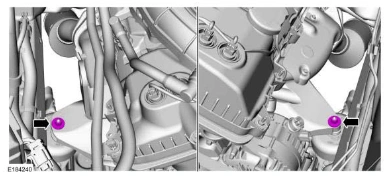

43. Install the RH and LH engine mount nuts.

Torque

: 46 lb.ft (63 Nm)

Oil Pump — original illustration 2, reference 5187Original colors & callouts · Select to enlarge

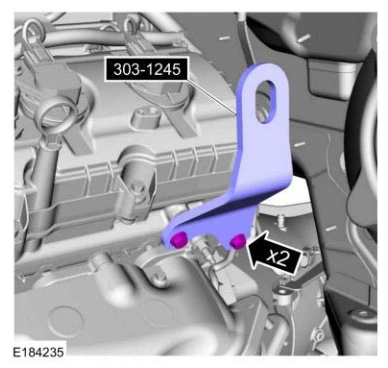

44. Remove Special Service Tool: 303-1245 Engine Lift Eye.

Oil Pump — original illustration 3, reference 5187Original colors & callouts · Select to enlarge
