Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5184

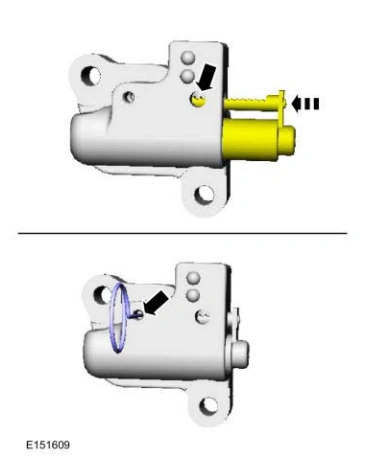

Align the hole in the ratchet plunger with the hole in the tensioner housing.

Install a lockpin.

Oil Pump — original illustration 1, reference 5184Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

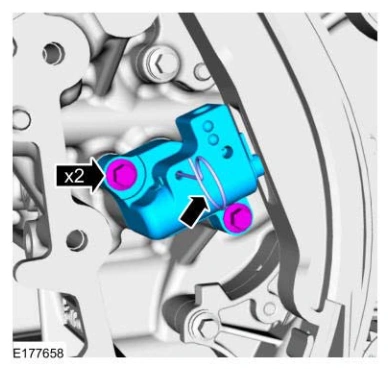

36. Install the timing chain tensioner and the bolts.

Torque

: 89 lb.in (10 Nm)

Remove the lockpin.

Oil Pump — original illustration 2, reference 5184Original colors & callouts · Select to enlarge

37.
