Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5182

31. Install the crankshaft sprocket with the timing dot mark out.

Oil Pump — original illustration 1, reference 5182Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

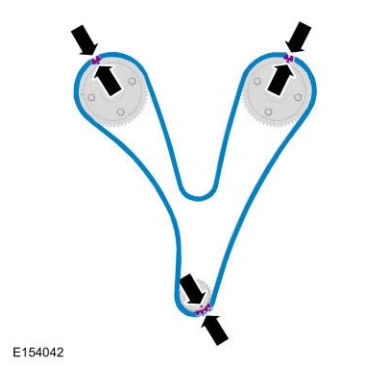

32. Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

Oil Pump — original illustration 2, reference 5182Original colors & callouts · Select to enlarge

33. Install the lower LH timing chain guide and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5182
