Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5185

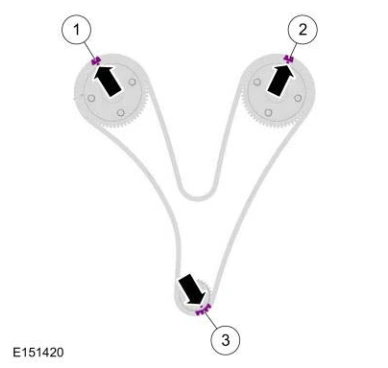

As a post-check, verify correct alignment of all timing marks.

There are 48 links in between the RH intake VVT unit colored link (1) and the LH intake VVT unit colored link (2).

There are 35 links in between LH intake VVT unit colored link (2) and the crankshaft sprocket links (3).

Oil Pump — original illustration 1, reference 5185Original colors & callouts · Select to enlarge

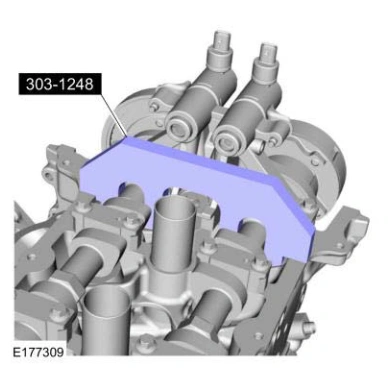

38. Remove Special Service Tool: 303-1248 Camshaft holding tools.

Oil Pump — original illustration 2, reference 5185Original colors & callouts · Select to enlarge

39. Install the RH oil tube and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°
