Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,183HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5183Original colors & callouts · Select to enlarge

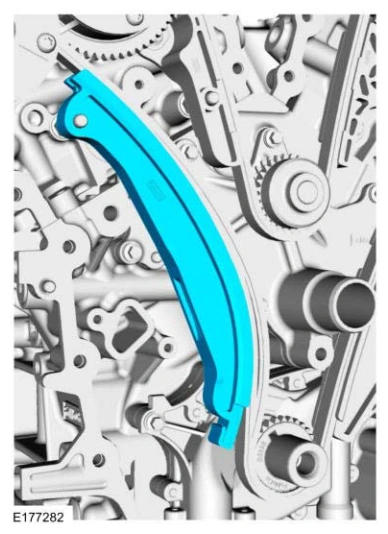

34. Install the timing chain tensioner arm.

Oil Pump — original illustration 2, reference 5183Original colors & callouts · Select to enlarge

35. Release the ratchet detent.

Using a soft-jawed vise, compress the ratchet plunger.
