Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5180

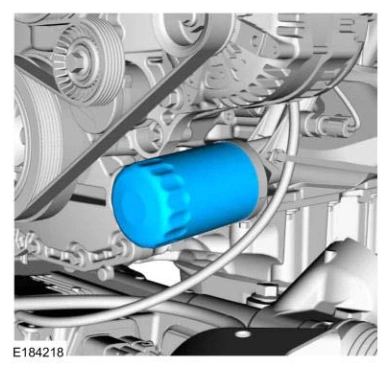

Oil Pump — original illustration 1, reference 5180Original colors & callouts · Select to enlarge

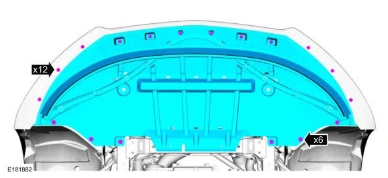

25. Install the underbody shield, bolts and the pin-type retainers.

Oil Pump — original illustration 2, reference 5180Original colors & callouts · Select to enlarge

26.

1. Install the underbody shield and the bolts.

Torque:

A: 97 lb.in (11 Nm)

B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts.

Torque:

C: 46 lb.ft (63 Nm)

D: 18 lb.in (2 Nm)
