Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,177HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5177Original colors & callouts · Select to enlarge

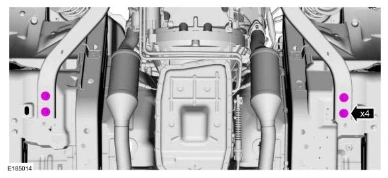

17. Tighten the rear subframe bolts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

Oil Pump — original illustration 2, reference 5177Original colors & callouts · Select to enlarge

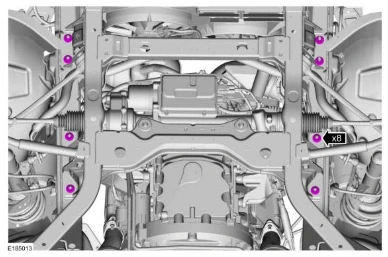

18. Tighten the front subframe nuts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

Oil Pump — original illustration 3, reference 5177Original colors & callouts · Select to enlarge

19. Remove the adjustable stand.

Use the General Equipment: Vehicle/Axle Stands
