Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5174

Torque

: 27 lb.in (3 Nm)

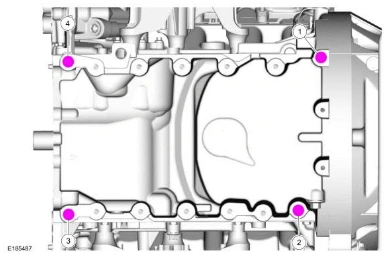

Oil Pump — original illustration 1, reference 5174Original colors & callouts · Select to enlarge

10. Install the remaining oil pan bolts and tighten in sequence shown in illustration.

Torque:

Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm)

Stage 2: Tighten bolt 10 an additional: 90°

Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

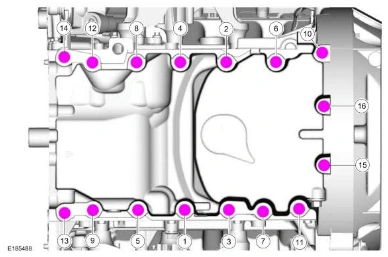

Oil Pump — original illustration 2, reference 5174Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

11. Tighten the oil pan bolts.

Torque

: 35 lb.ft (48 Nm)
