Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5171

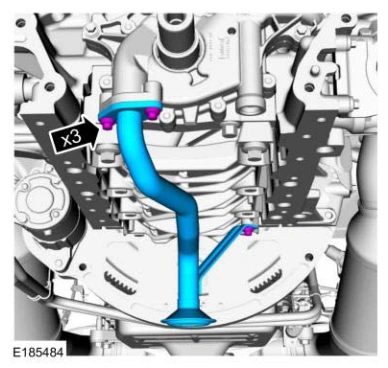

Oil Pump — original illustration 1, reference 5171Original colors & callouts · Select to enlarge

NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

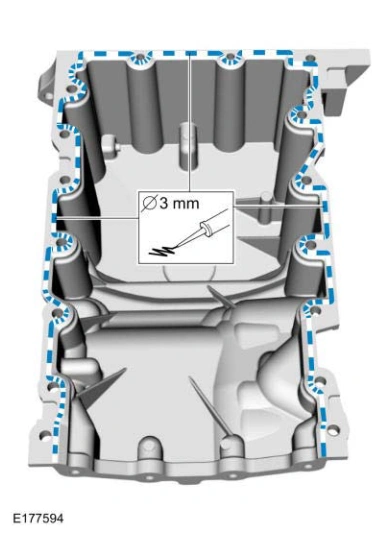

4. Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Oil Pump — original illustration 2, reference 5171Original colors & callouts · Select to enlarge

5. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2
