Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,173HTML edition
← Chapter contentsManual collection

bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

NOTE: Do not torque at this time.

7. Install the oil pan bolts.

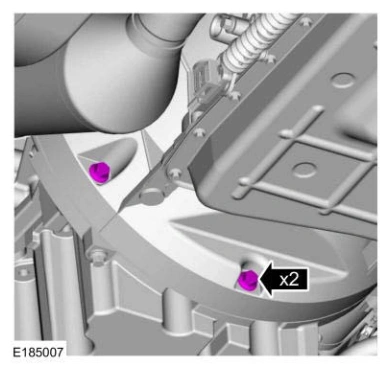

Oil Pump — original illustration 1, reference 5173Original colors & callouts · Select to enlarge

NOTE: Do not torque at this time.

8. Install the oil pan bolt.

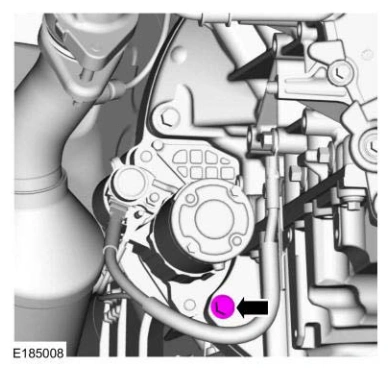

Oil Pump — original illustration 2, reference 5173Original colors & callouts · Select to enlarge

9. Tighten the oil pan bolts in sequence.

Ford_Mustang_all_2015-2017.pdf · source reference 5173
