Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,175HTML edition
← Chapter contentsManual collection

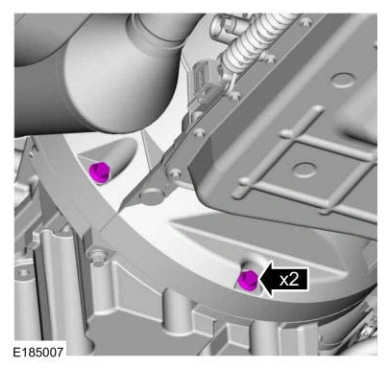

Oil Pump — original illustration 1, reference 5175Original colors & callouts · Select to enlarge

12. Tighten the oil pan bolt.

Torque

: 35 lb.ft (48 Nm)

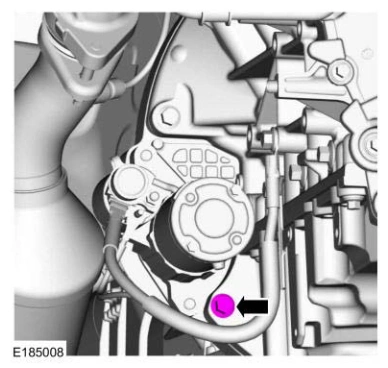

Oil Pump — original illustration 2, reference 5175Original colors & callouts · Select to enlarge

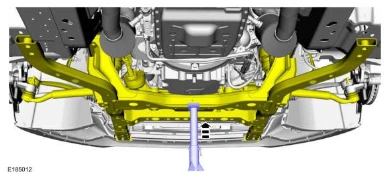

13. Using an adjustable stand, raise the subframe.

Use the General Equipment: Vehicle/Axle Stands

Oil Pump — original illustration 3, reference 5175Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80
