Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,176HTML edition
← Chapter contentsManual collection

14. Position the transmission cooling tube bracket and install the nut.

Torque

: 124 lb.in (14 Nm)

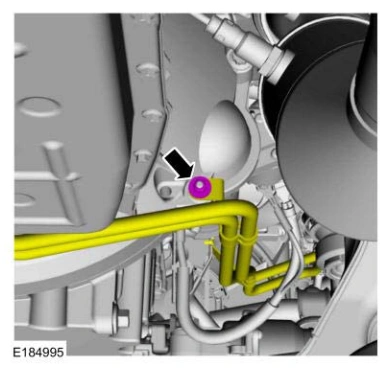

Oil Pump — original illustration 1, reference 5176Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

15. Install the new front subframe nuts loosely.

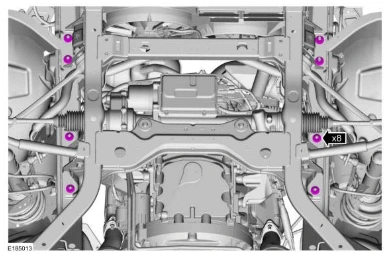

Oil Pump — original illustration 2, reference 5176Original colors & callouts · Select to enlarge

16. Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.

Align the subframe to the alignment marks made during removal.

Install the new rear subframe bolts loosely.

Ford_Mustang_all_2015-2017.pdf · source reference 5176
