Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5172

crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

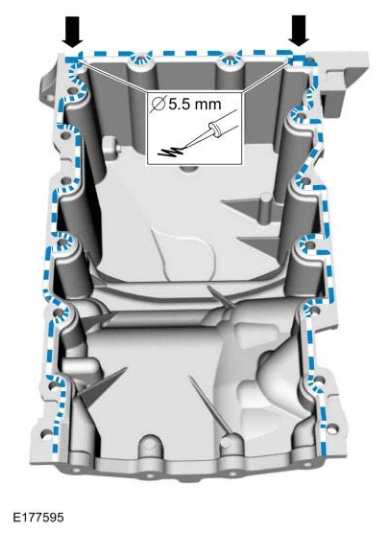

Oil Pump — original illustration 1, reference 5172Original colors & callouts · Select to enlarge

NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

6. Install the bolts finger tight.

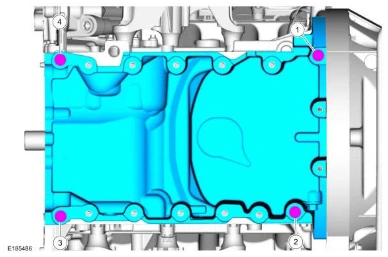

Oil Pump — original illustration 2, reference 5172Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan
