Oil Pump — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,170HTML edition
← Chapter contentsManual collection

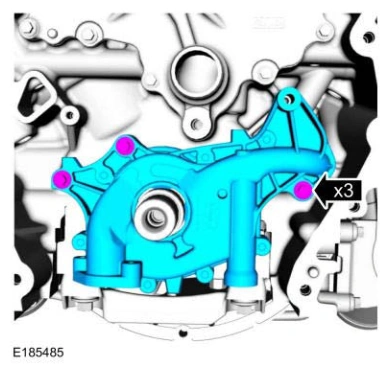

Oil Pump — original illustration 1, reference 5170Original colors & callouts · Select to enlarge

2. Install a new oil pump screen and pickup tube O-ring seal.

Oil Pump — original illustration 2, reference 5170Original colors & callouts · Select to enlarge

3. Install the oil pump screen and pickup tube and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5170
