Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5167

suitable tool turning at the recommended speed of 15, 000 rpm, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

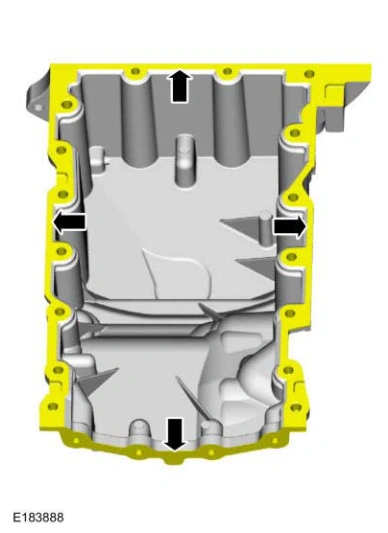

50. Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

Oil Pump — original illustration 1, reference 5167Original colors & callouts · Select to enlarge

NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

51. Make sure that the mating faces of the engine block are clean and free of foreign material. Refer
