Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5166

bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

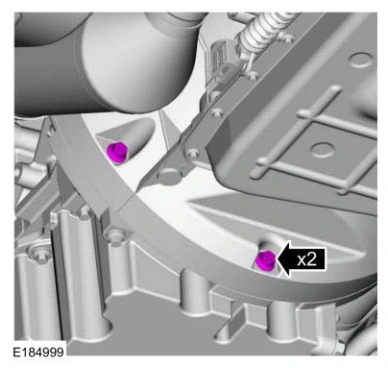

47. Remove the oil pan bolts.

Oil Pump — original illustration 1, reference 5166Original colors & callouts · Select to enlarge

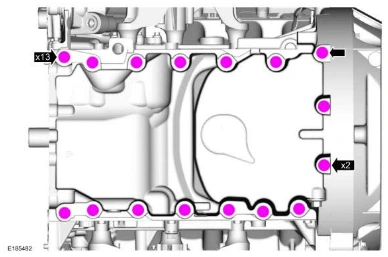

48. Remove the oil pan bolts.

Oil Pump — original illustration 2, reference 5166Original colors & callouts · Select to enlarge

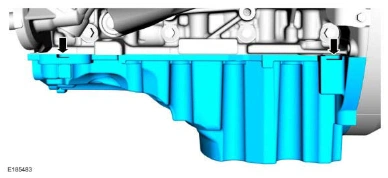

49. Using a pry tool on the pry pads shown, remove the oil pan.

Oil Pump — original illustration 3, reference 5166Original colors & callouts · Select to enlarge

NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a
