Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,163HTML edition
← Chapter contentsManual collection

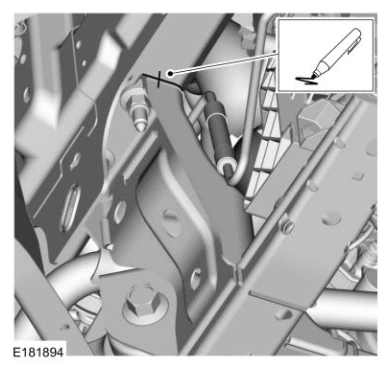

Oil Pump — original illustration 1, reference 5163Original colors & callouts · Select to enlarge

40. Mark the position of the rear subframe for reference during installation.

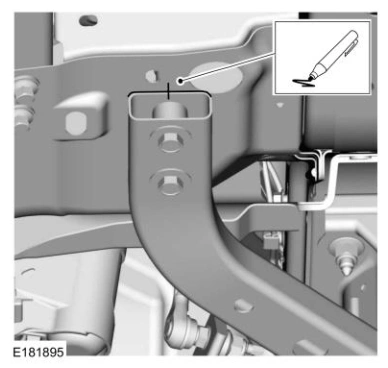

Oil Pump — original illustration 2, reference 5163Original colors & callouts · Select to enlarge

41. Using an adjustable stand, support the subframe.

Use the General Equipment: Vehicle/Axle Stands
