Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5165

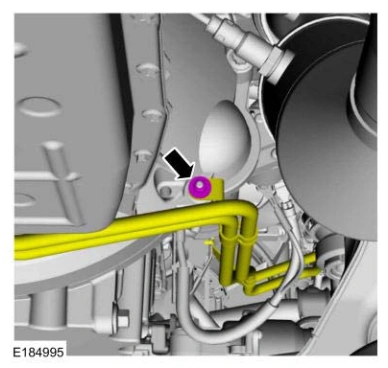

Oil Pump — original illustration 1, reference 5165Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

45. Using an adjustable stand, lower the subframe 102 mm (4.0 in).

Use the General Equipment: Vehicle/Axle Stands

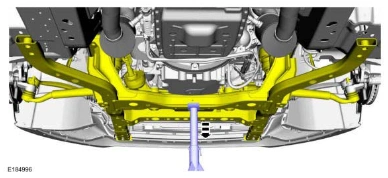

Oil Pump — original illustration 2, reference 5165Original colors & callouts · Select to enlarge

46. Remove the oil pan bolt.

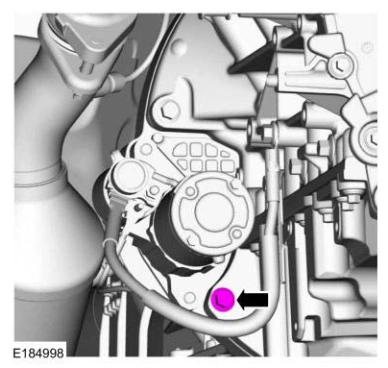

Oil Pump — original illustration 3, reference 5165Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan

Ford_Mustang_all_2015-2017.pdf · source reference 5165
