Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5168

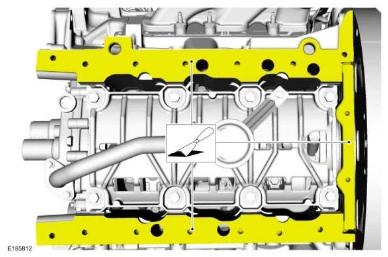

to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Oil Pump — original illustration 1, reference 5168Original colors & callouts · Select to enlarge

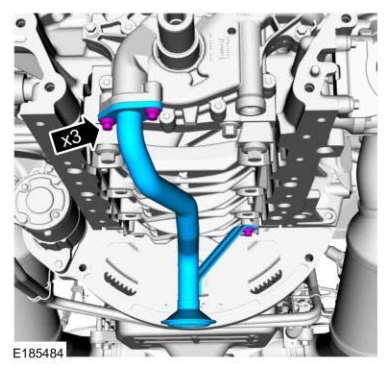

52. Remove the bolts and oil pump screen and pickup tube.

Oil Pump — original illustration 2, reference 5168Original colors & callouts · Select to enlarge

53. Remove and discard the oil pump screen and pickup tube O-ring seal.
