Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5169

Oil Pump — original illustration 1, reference 5169Original colors & callouts · Select to enlarge

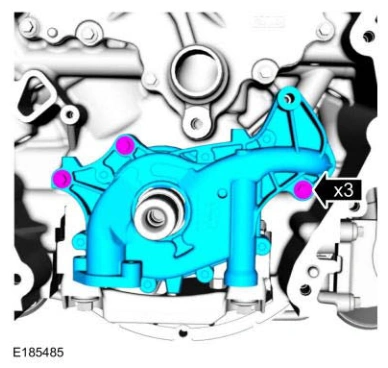

54. Remove the bolts and oil pump.

Oil Pump — original illustration 2, reference 5169Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OIL PUMP > INSTALLATION

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

1. Install the oil pump and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5169
