Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,164HTML edition
← Chapter contentsManual collection

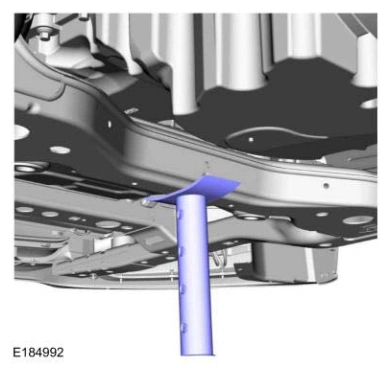

Oil Pump — original illustration 1, reference 5164Original colors & callouts · Select to enlarge

42. Remove and discard the rear subframe bolts.

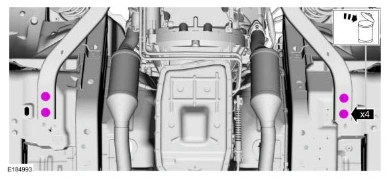

Oil Pump — original illustration 2, reference 5164Original colors & callouts · Select to enlarge

43. Remove and discard the front subframe nuts.

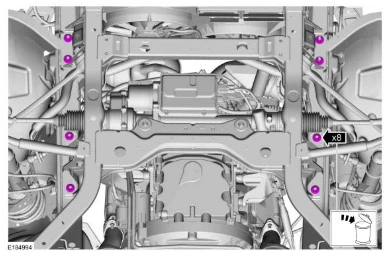

Oil Pump — original illustration 3, reference 5164Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

44. Remove the nut and position the transmission cooling tube bracket aside.

Ford_Mustang_all_2015-2017.pdf · source reference 5164
