Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5161

Use the General Equipment: Oil Drain Equipment

Oil Pump — original illustration 1, reference 5161Original colors & callouts · Select to enlarge

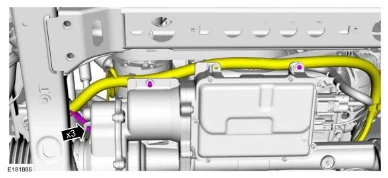

36. Detach the EPAS wiring harness pin-type retainers.

Oil Pump — original illustration 2, reference 5161Original colors & callouts · Select to enlarge

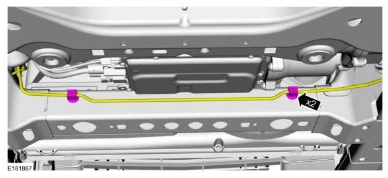

37. Detach the brake line retainers from the subframe.

Oil Pump — original illustration 3, reference 5161Original colors & callouts · Select to enlarge

38.

WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

WARNING: DO NOT hammer, pry or force steering column and column shafts
