Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,159HTML edition
← Chapter contentsManual collection

Install retaining pins to support cooling module.

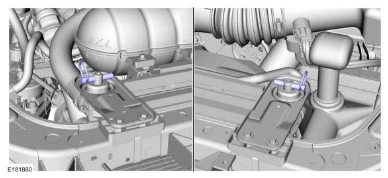

Oil Pump — original illustration 1, reference 5159Original colors & callouts · Select to enlarge

30. Install the special tool to support the engine.

Install Special Service Tool: 303-F072 Support Bar, Engine.

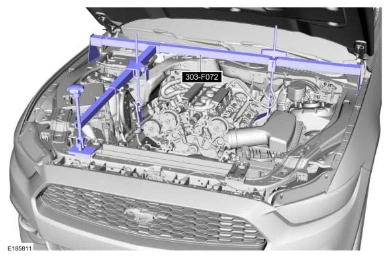

Oil Pump — original illustration 2, reference 5159Original colors & callouts · Select to enlarge

31. Remove the front wheels and tires. Refer to: Wheel and Tire .

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

32.

1. Remove the bolts and the underbody shield.

2. Remove the bolts and the subframe bracket and underbody shield assembly.

Ford_Mustang_all_2015-2017.pdf · source reference 5159
