Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,157HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5157Original colors & callouts · Select to enlarge

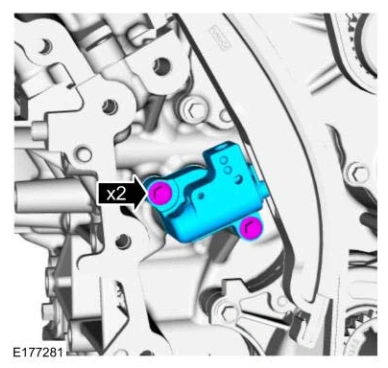

25. Remove the timing chain tensioner arm.

Oil Pump — original illustration 2, reference 5157Original colors & callouts · Select to enlarge

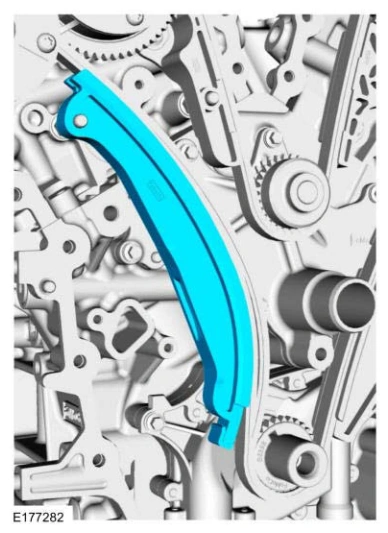

26. Remove the bolts and the lower LH timing chain guide.
