Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,154HTML edition
← Chapter contentsManual collection

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

18. Install Special Service Tool: 303-1248 Camshaft holding tools.

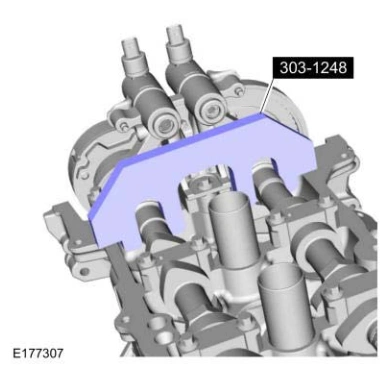

Oil Pump — original illustration 1, reference 5154Original colors & callouts · Select to enlarge

19. Remove the bolts and the RH oil tube.

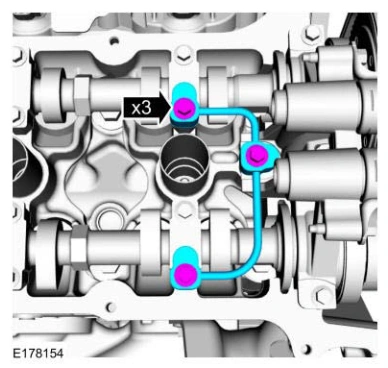

Oil Pump — original illustration 2, reference 5154Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

20. Install Special Service Tool: 303-1248 Camshaft holding tools.
