Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,155HTML edition
← Chapter contentsManual collection

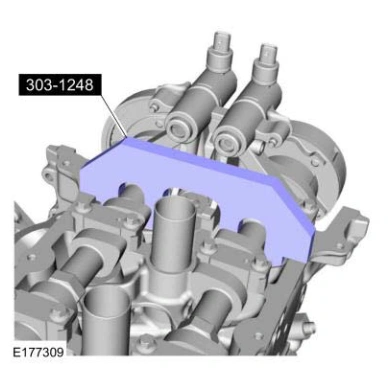

Oil Pump — original illustration 1, reference 5155Original colors & callouts · Select to enlarge

NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

21. Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown in illustration.

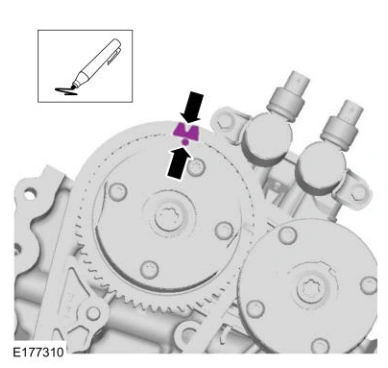

Oil Pump — original illustration 2, reference 5155Original colors & callouts · Select to enlarge

22. Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown in illustration.
