Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,152HTML edition
← Chapter contentsManual collection

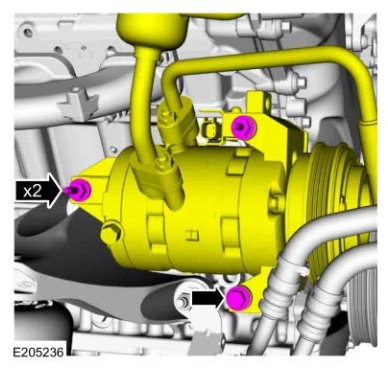

Oil Pump — original illustration 1, reference 5152Original colors & callouts · Select to enlarge

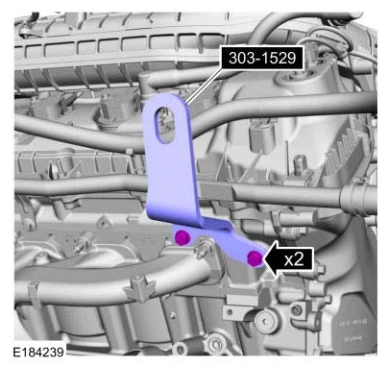

12. Install Special Service Tool: 303-1529 Lift Eye, Engine.

Oil Pump — original illustration 2, reference 5152Original colors & callouts · Select to enlarge

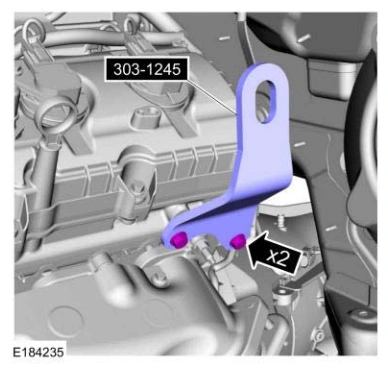

13. Install Special Service Tool: 303-1245 Engine Lift Eye.

Oil Pump — original illustration 3, reference 5152Original colors & callouts · Select to enlarge
