Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5149

REMOVAL AND INSTALLATION > OIL PUMP > REMOVAL

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

Convertible

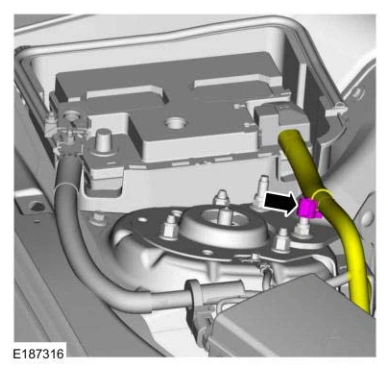

4. Detach the battery cable retainer.

Oil Pump — original illustration 1, reference 5149Original colors & callouts · Select to enlarge

5. Disconnect the positive battery cable. Refer to: Battery Disconnect and Connect .

6. Remove the cowl extension nuts.

Remove the bolts and the cowl extension.
