Name | Specification |
Thread Sealant with PTFETA-24-B | WSK-M2G350-A2 |
REMOVAL AND INSTALLATION > OIL PRESSURE SWITCH > REMOVAL
1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.
2.

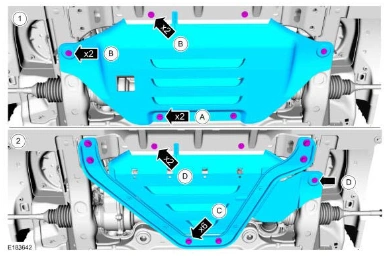

1. Loosen the 2 front bolts, remove the remaining bolts and the underbody shield.
Torque:
A: 97 lb.in (11 Nm)
B: 18 lb.in (2 Nm)
2. Loosen the 2 front bolts, remove the remaining bolts and the subframe bracket and underbody shield assembly.
Torque:
C: 46 lb.ft (63 Nm)
D: 18 lb.in (2 Nm)
3. Disconnect oil pressure switch electrical connector.
