Oil Pressure Switch — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5145

Oil Pressure Switch — original illustration 1, reference 5145Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

46. Install the cowl panel grille. Refer to: Cowl Panel Grille .

47. Connect the negative battery cable. Refer to: Battery Disconnect and Connect .

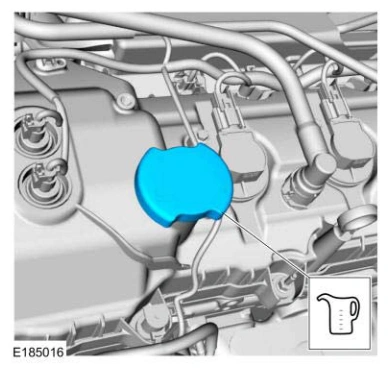

48. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Oil Pressure Switch — original illustration 2, reference 5145Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OIL PRESSURE SWITCH

Materials
