Oil Pressure Switch — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5147

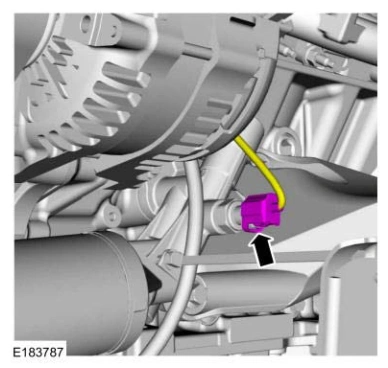

Oil Pressure Switch — original illustration 1, reference 5147Original colors & callouts · Select to enlarge

NOTE: If the oil pressure switch is to be reused, apply thread sealant.

4. Remove the oil pressure switch.

Material

: Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque

: 159 lb.in (18 Nm)

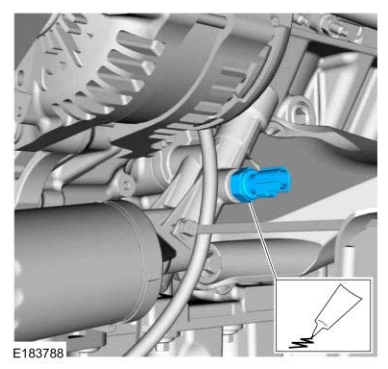

Oil Pressure Switch — original illustration 2, reference 5147Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OIL PRESSURE SWITCH > INSTALLATION

1. To install, reverse the removal procedure.

Ford_Mustang_all_2015-2017.pdf · source reference 5147
