Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,144HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5144Original colors & callouts · Select to enlarge

Convertible

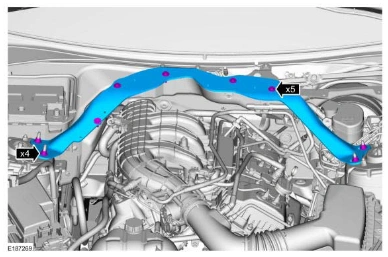

43. Install the cowl extension and the bolts.

Torque

: 26 lb.ft (35 Nm)

Install the cowl extension nuts.

Torque

: 41 lb.ft (55 Nm)

Oil Pan — original illustration 2, reference 5144Original colors & callouts · Select to enlarge

44. Connect the positive battery cable. Refer to: Battery Disconnect and Connect .

45. Attach the battery cable retainer.

Ford_Mustang_all_2015-2017.pdf · source reference 5144
