Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,141HTML edition
← Chapter contentsManual collection

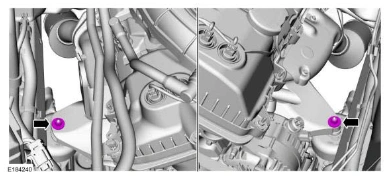

34. Install the RH and LH engine mount nuts.

Torque

: 46 lb.ft (63 Nm)

Oil Pan — original illustration 1, reference 5141Original colors & callouts · Select to enlarge

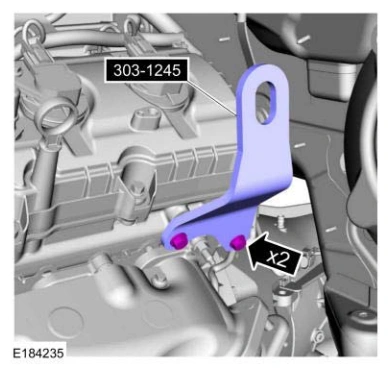

35. Remove Special Service Tool: 303-1245 Engine Lift Eye.

Oil Pan — original illustration 2, reference 5141Original colors & callouts · Select to enlarge

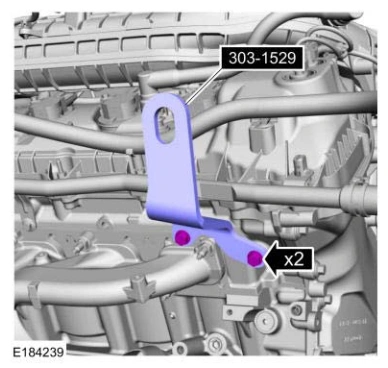

36. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

Oil Pan — original illustration 3, reference 5141Original colors & callouts · Select to enlarge
