Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5142

37. Position the A/C compressor and install the stud bolts and bolt.

Torque

: 18 lb.ft (25 Nm)

Oil Pan — original illustration 1, reference 5142Original colors & callouts · Select to enlarge

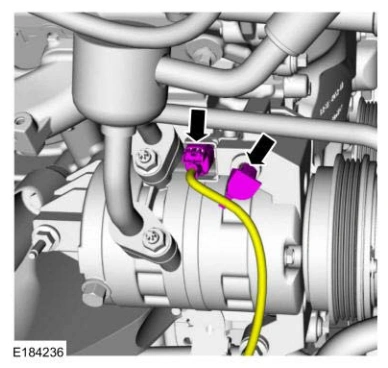

38. Connect the A/C compressor electrical connector and the wire harness retainer.

Oil Pan — original illustration 2, reference 5142Original colors & callouts · Select to enlarge

39. Install the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

40. Install the oil level indicator.
