Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5140

Oil Pan — original illustration 1, reference 5140Original colors & callouts · Select to enlarge

30. Install the front wheels and tires. Refer to: Wheel and Tire .

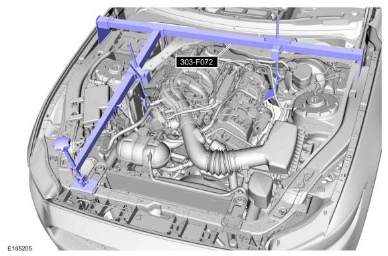

31. Remove Special Service Tool: 303-F072 Support Bar, Engine.

Oil Pan — original illustration 2, reference 5140Original colors & callouts · Select to enlarge

32. Remove the retaining pins.

Oil Pan — original illustration 3, reference 5140Original colors & callouts · Select to enlarge

33. Install the radiator top shield and the retainers.

Oil Pan — original illustration 4, reference 5140Original colors & callouts · Select to enlarge
