Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5138

Oil Pan — original illustration 1, reference 5138Original colors & callouts · Select to enlarge

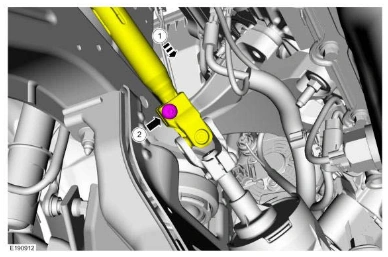

24. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

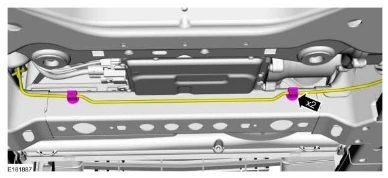

25. Attach the brake line retainers to the subframe.

Oil Pan — original illustration 2, reference 5138Original colors & callouts · Select to enlarge

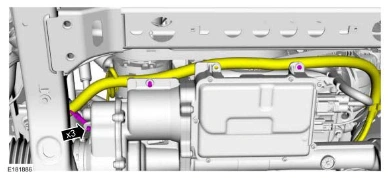

26. Attach the EPAS wiring harness pin-type retainers.

Oil Pan — original illustration 3, reference 5138Original colors & callouts · Select to enlarge

NOTE: Do not lubricate the engine oil filter gasket.

27. Install a new engine oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°
