Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5135

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

17. Install the new front subframe nuts loosely.

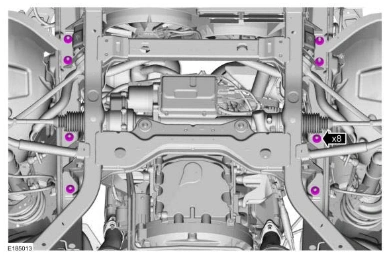

Oil Pan — original illustration 1, reference 5135Original colors & callouts · Select to enlarge

18. Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.

Align the subframe to the alignment marks made during removal.

Install the new rear subframe bolts loosely.

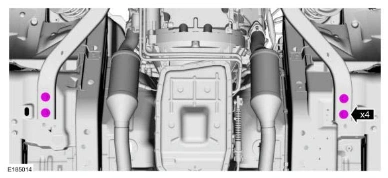

Oil Pan — original illustration 2, reference 5135Original colors & callouts · Select to enlarge

19. Tighten the rear subframe bolts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

Oil Pan — original illustration 3, reference 5135Original colors & callouts · Select to enlarge

20. Tighten the front subframe nuts in a cross pattern.
