Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,133HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5133Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

13. Tighten the oil pan bolts.

Torque

: 35 lb.ft (48 Nm)

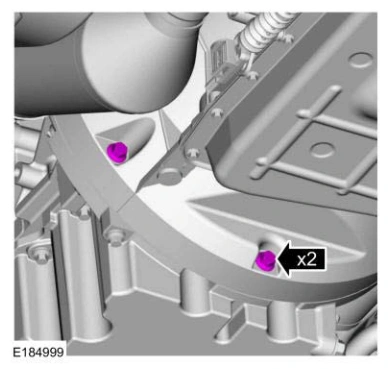

Oil Pan — original illustration 2, reference 5133Original colors & callouts · Select to enlarge

14. Tighten the oil pan and bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)
